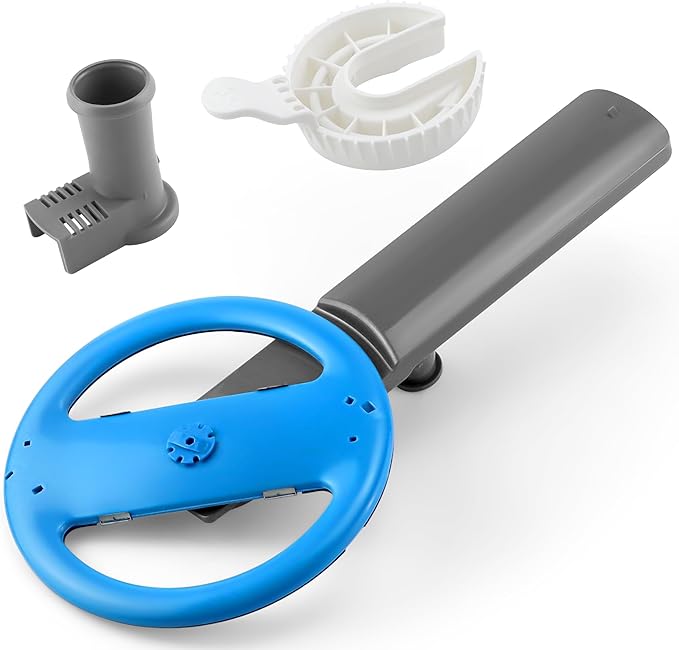

Upgraded 5304507158 Dishwasher Spray Arm Assembly Fit for Frigi-daire Dishwasher Spray Arm with 154252701 5304518968, Replaces
- [Package Includes]:1 Pcs 5304507158 Dishwasher Lower Wash Arm, 1 Pcs 5304518968 Lower Spray Arm Support.
- [Compatible Models]:Dishwasher spray arm assembly replacement 5304507158 is fit for Frigi-daire lower.
- [High Quality 5304507158 Dishwasher Lower Spray Arm Assembly]:Lower spray arm 5304507158 is manufactured.
- [Fix Symptoms]:Noisy, Leaking, Not draining, Not cleaning dishes properly, Not rotating properly. When.
5304518927 154567702 Dishwasher Lower Spray Arm Fit for Ken-more Frigi-daire dishwasher replacement parts number
- [Package Includes]:1 Pcs 5304518927 dishwasher lower wash spray arm.Dishwasher lower wash arm assembly.
- [High Quality]:5304518927 Dishwasher arm replacement cleans plates in the dishwasher tub by rotating and.
- [Easy Installation]:Dishwasher lower spray arm 5304518927 easy to install,requires no tools,just take out.
- [Compatible Models]:Dishwasher arm replacement 154567702 fit for.
Standing water in the bottom of a dishwasher after a full cycle usually means one of four things, and three of them cost nothing to fix. But when your dishwasher is not cleaning the top rack specifically, it points to a different set of issues. Dirty plates and glasses on the upper rack indicate a problem with water circulation or spray intensity directed upwards. This guide explores the most common culprits for a dishwasher not cleaning the top rack and provides actionable solutions, from simple adjustments to part replacements.
Common Causes for a Dishwasher Not Cleaning the Top Rack
A dishwasher not cleaning the upper rack is a prevalent issue. It often stems from blockages, incorrect loading, or faulty components. Understanding these causes is the first step toward restoring spotless dishes. We will cover five likely reasons, starting with the most frequent.
1. Clogged or Obstructed Spray Arms
The most common reason a dishwasher is not cleaning the top rack is blocked spray arms. Dishwashers use rotating spray arms to distribute water and detergent throughout the tub. The upper spray arm, responsible for cleaning the top rack, can become clogged with food particles, mineral deposits, or detergent residue. If the holes in the spray arm are blocked, water cannot be sprayed with enough force or in the right direction to reach the upper rack effectively. This directly leads to the top rack of dishwasher not getting clean.
To check for clogs, first remove the upper rack. You can usually do this by pulling the rack out and disengaging it from its tracks or by unhooking a clip. Once the rack is out, inspect the upper spray arm. Look closely at the small holes along the arm. Use a toothpick, a straightened paperclip, or a thin piece of wire to gently poke through any visible blockages. Be careful not to enlarge the holes. After clearing debris, rinse the spray arm under running water to flush out any remaining particles. Reattach the spray arm and test the dishwasher.
If the spray arm itself is damaged or cracked, it may need replacement. A damaged spray arm cannot distribute water effectively, even if its holes are clear. Replacement spray arms are relatively inexpensive. For a compatible replacement part, consider the 5304517203 Dishwasher Lower Spray Arm Compatible with Frigidaire Kenmore Replacement Parts EAP12585623 1545680 154250801. This part is designed to fit various Frigidaire and Kenmore models. The cost for a replacement spray arm typically ranges from $20 to $50, depending on the brand and model. This fix is achievable for most DIYers.
2. Improper Loading Techniques
How you load your dishwasher significantly impacts cleaning performance. If the top rack of dishwasher is not getting clean, it might be due to how dishes are arranged. Large items, tall glasses, or items with handles that extend downwards can block the spray arm’s rotation or impede water flow to certain areas. Items should be angled downwards to allow water to drain and rinse away food debris. Avoid nesting bowls or plates too tightly, as this prevents water from reaching all surfaces. Place plastic items, which are lighter, on the top rack, as they are less likely to be dislodged by the spray. Check your dishwasher manual for specific loading recommendations. Correct loading is a free fix that can dramatically improve cleaning results for both racks.
3. Low Water Temperature
Dishwashers require hot water to effectively dissolve grease and activate detergent. If your water heater is set too low, or if the water line to the dishwasher is very long, the water temperature reaching the appliance might be insufficient. Most dishwashers perform best with water temperatures between 120°F and 140°F (49°C and 60°C). Low water temperature means detergent may not fully activate, and grease will not break down, leading to residue left on dishes, particularly on the top rack which receives less direct scrubbing action.
Check your water heater’s thermostat setting and increase it if necessary. Ensure the hot water line to the dishwasher is not kinked. Before starting a cycle, run the hot water tap at the nearest sink until it runs hot. This flushes out any cooler water in the line, ensuring the dishwasher fills with hot water. You can also use a thermometer to check the water temperature directly from the tap connected to the dishwasher. If your water heater is old or undersized, you might need to consider upgrading it. Professional plumbers can assess and replace water heaters, with costs varying widely from $800 to $2,500 or more for a new unit.
4. Faulty Water Inlet Valve or Low Water Pressure
The water inlet valve controls the flow of water into the dishwasher. If this valve is partially clogged or failing, it may not allow enough water to enter the tub during the wash cycle. Insufficient water volume means the spray arms, especially the upper one, will not receive enough water pressure to clean effectively. This can result in a dishwasher not cleaning the upper rack and leaving dishes with a film of detergent or food debris. Similarly, if the main water pressure to your home is low, it will affect all water-using appliances.
You can check for a partially open inlet valve by listening to the dishwasher during the fill cycle. You should hear a steady stream of water. If the sound is weak or intermittent, the valve might be the issue. Inspecting the valve itself usually requires pulling the dishwasher out from under the counter and accessing the underside of the appliance. If you are not comfortable with this, it is best to call a professional. A service call to diagnose and replace a water inlet valve typically costs between $150 and $300, including parts and labor. For low home water pressure, you may need to consult a plumber to check your home’s main water supply line and pressure regulator.
5. Clogged Dishwasher Filter
While a clogged filter primarily affects draining and overall cleaning, it can indirectly impact the upper rack. A heavily clogged filter restricts water circulation throughout the tub. This means less water is pumped up to the upper spray arm, reducing its effectiveness. A dirty filter can also recirculate food particles, redepositing them onto dishes. Regularly cleaning your dishwasher filter is a critical part of appliance maintenance. It is recommended to clean your filter monthly, or more often if you notice issues. You can learn more about how often you should clean your dishwasher filter at applianceaid.net.
Locating and cleaning the filter is a simple DIY task. Most filters are found at the bottom of the dishwasher tub, under the lower spray arm. Consult your dishwasher manual for specific instructions on removing and cleaning your model’s filter. Typically, you will twist and lift the filter assembly. Rinse the filter under running water, using a soft brush to remove any stubborn debris. Reassemble the filter and run a rinse cycle to check for leaks.
When to Call a Professional
If you have tried the above troubleshooting steps and your dishwasher is still not cleaning the top rack dishes, it may be time to call a qualified appliance repair technician. Persistent issues, such as a malfunctioning pump, a faulty control board, or internal plumbing problems, often require specialized tools and expertise. These problems can also be more complex to diagnose and repair, potentially involving significant disassembly of the appliance. A professional can accurately identify the root cause and perform the necessary repairs safely and efficiently. A service call fee typically ranges from $75 to $150, with additional charges for parts and labor.
For example, if the main circulation pump is failing, it won't be able to send adequate water pressure to the upper spray arm, regardless of other factors. This is a more involved repair, often costing several hundred dollars. Similarly, problems with the dishwasher's internal water distribution system or heating element could be at fault. These are not typically DIY-friendly repairs. For significant component failures, you might want to compare the cost of repair against the cost of a new dishwasher, especially if your current unit is older than 8-10 years.
