A cold burner on your electric stove, despite being turned on, signals a common problem that often has a simple solution. Whether you have a traditional coil-top range or a sleek electric glass top stove, a non-responsive cooking element disrupts meal preparation. Identifying the root cause can save you the expense of a professional service call. Most issues are minor and can be fixed with basic tools and some careful observation. This guide details the five most frequent causes for an electric stove burner not working, offering step by step troubleshooting for each.
Before beginning any repair or diagnostic work on your electric range, always disconnect the power. Unplug the stove from its wall outlet or turn off the corresponding circuit breaker in your home's electrical panel. Loose or Damaged Burner Element (Coil Tops)
This is often the simplest and most common reason a coil-type electric stove burner does not work. The burner element itself can become loose from its terminal block, preventing an electrical connection. Constant use and cleaning can sometimes dislodge it.
How to Fix a Loose Burner Element
- Disconnect Power: Make sure the stove is unplugged or the breaker is off.
- Inspect the Element: Carefully lift the non-working burner element. Look at the prongs that plug into the receptacle.
- Check for Damage: Examine the prongs and the receptacle for any signs of burning, corrosion, or bending. If the prongs are bent, you might be able to gently straighten them with pliers. If the element itself looks visibly damaged (broken coils, severe discoloration), it needs replacement.
- Reseat the Element: Firmly push the burner element back into its receptacle, making sure the prongs are fully inserted.
- Test: Restore power and test the burner.
If reseating does not work, try swapping the non-working element with a known working element of the same size from another burner. If the swapped element works in the original spot, then your original element is likely faulty and needs replacement. If the original element still does not work in the new spot, the problem lies elsewhere, likely with the receptacle or the control switch.
2. Faulty Infinite Control Switch
The infinite control switch is the dial you turn to adjust the heat of your electric stove burner. It regulates the power flowing to the heating element. If this switch malfunctions, the burner may not heat at all, or it may only work on certain settings. This is a very common cause for an electric cooktop burner not working, especially if the element itself appears fine.
Diagnosing a Faulty Control Switch
Visual inspection can sometimes reveal a problem. Look for signs of burning or melting around the switch or its wiring when you remove the control panel. However, a multimeter is often needed for accurate diagnosis. You can learn more about using a multimeter in an Electrical Test Kit Review.
- Disconnect Power: Always unplug the range or trip the circuit breaker.
- Access the Switch: Remove the control knobs and the control panel to access the switches behind them. This usually involves removing screws.
- Visual Inspection: Look for any charred wires, melted plastic, or loose connections on the back of the non-working switch.
- Test with Multimeter: With the power still off, disconnect the wires from the switch, noting their positions or taking a picture. Set your multimeter to the Rx1 setting (resistance). Touch the probes to the terminals of the switch. Rotate the switch through its settings. A healthy switch will show varying resistance readings or continuity changes. A faulty switch may show no continuity at all, or consistent open circuits regardless of the setting. Consult your stove's wiring diagram for specific continuity checks.
Replacing the Infinite Control Switch
Replacing an infinite control switch is a common DIY repair. New switches usually cost between $30 and $70. For example, if you have a Whirlpool range and your electric stove burner is not working, the 3148954 3148953 3148951 3149400 Range Burner Infinite Control Switch Replacement is a top pick for its wide compatibility and ability to fix frustrating stove issues. This professional infinite control switch enables smooth, stepless heat control, restoring full functionality to your burner. For GE ranges, the WB24X25013 Electric Range Infinite Control Switch is a direct replacement for many models, featuring an upgraded composite metal switch design. If you own a Frigidaire or Kenmore stove, the 316436001 316021501 Range Infinite Switch is compatible with large surface burners (typically 8 inches) and replaces several OEM part numbers.
When replacing, take a photo of the existing wiring before disconnecting anything. This helps make sure correct reinstallation. Connect the new switch, reassemble the control panel, and test the burner.
3. Damaged Wiring
Burnt, frayed, or loose wiring can prevent an electric range burner from receiving power. This issue is less common than a faulty element or switch but can occur due to heat exposure or physical damage over time. If you smell burning plastic or see discoloration on wires, this is a strong indicator.
Inspecting and Repairing Wiring
- Disconnect Power: Remove power from the stove.
- Access Wiring: Remove the back panel of the range or the control panel to access the internal wiring.
- Visual Check: Carefully inspect all wires leading to the non-working burner, the control switch, and the terminal block for the burner. Look for signs of burning, charring, nicks, or breaks in the insulation.
- Test Continuity: Use a multimeter to test for continuity along the suspect wires. If a wire shows no continuity, it is broken.
- Repair or Replace: For minor damage, you might be able to repair a wire with electrical tape if the insulation is only nicked and no copper strands are broken. However, for significant burning or breakage, the wire should be replaced entirely. Make sure to use high-temperature appliance wire of the correct gauge.
Damaged wiring can be a fire hazard. If you are unsure about wiring repairs, or if the damage is extensive, it is best to call a qualified appliance technician. A professional can safely diagnose and replace electrical components. Blown Thermal Fuse (Glass Tops)
Some electric glass top stoves include a thermal fuse as a safety device. This fuse protects the heating element from overheating. If the burner overheats, the thermal fuse blows, cutting power to the element to prevent damage. When this happens, your electric glass top stove burner will not work.
Checking and Replacing a Thermal Fuse
- Disconnect Power: Always begin by disconnecting power to the stove.
- Access the Element: You will need to lift the glass cooktop or remove the burner assembly from underneath. This varies by model.
- Locate the Fuse: The thermal fuse is usually a small, cylindrical component attached to the heating element or its wiring.
- Test Continuity: Use a multimeter set to continuity mode. Place the probes on each terminal of the fuse. If the fuse is good, the multimeter will show continuity (a beep or a reading close to zero ohms). If it is blown, it will show an open circuit (no reading or infinite resistance).
- Replace Fuse: If the fuse is blown, replace it with an exact match from the manufacturer. Thermal fuses are typically inexpensive, costing $10-$30.
Remember that a blown thermal fuse indicates an overheating event. Investigate why it blew. Common causes include a faulty temperature sensor, extended high-heat cooking, or poor ventilation. Addressing the underlying cause prevents the new fuse from blowing again.
5. Main Power Supply Issue
If multiple electric stove burners are not working, or if the entire range is without power, the problem might stem from the main power supply. This is less likely to affect a single burner in isolation but is worth checking if other elements or the oven itself are also malfunctioning. For issues with the oven not heating, you can also refer to our guide on Oven Not Heating Properly? Troubleshooting & Top Tools.
Troubleshooting Power Supply
- Check Circuit Breaker: Go to your home's electrical panel. Look for a tripped breaker labeled for your kitchen or range. A tripped breaker will be in the middle position between ON and OFF. Flip it fully to OFF, then firmly back to ON.
- Test Outlet (if accessible): If you can safely access the range's power outlet, use a voltage tester or multimeter to confirm it is receiving 240V. This requires caution and electrical knowledge.
- Inspect Power Cord: Check the power cord for any visible damage, kinks, or burning.
If the breaker continues to trip immediately after resetting, or if there's no power at the outlet, there is a serious electrical problem. This requires a licensed electrician to diagnose and repair. Electrical panel work or wiring issues within the wall are not DIY projects. If you are uncomfortable working with electricity, lack the necessary tools (like a multimeter), or cannot identify the problem after following these steps, contact an appliance repair technician. Issues involving extensive wiring damage, a repeatedly tripping circuit breaker, or any situation where you suspect a major electrical fault should also be handled by a professional. Their expertise makes sure safety and correct repair.
Regular appliance maintenance can prevent some of these issues. A Home Appliance Maintenance Checklist can guide you through keeping all your home appliances in top working order.
3148954 3148953 3148951 3149400 Range Burner Infinite Control Switch Replacement for Whirlpool Range Switch WP3149400 WP3148954
- Wide Compatibility:Replacement for OEM part #3149400, and also replaces multiple alternative part numbers:.
- Fixes Common Issues:The 3149400 Range Burner Switch fixes frustrating stove issues in one replacement: it.
- Stepless Heat Control:As a professional infinite control switch, the 3148954 enables smooth, stepless heat.
- Durable Construction:The 3148953 Range Switch Replacement is crafted from high-grade heat-resistant.
WB24X25013 Electric Range Infinite Control Switch Replace for GE, WB24X25013 Surface Element Control Switch, for
- [ Applicable Model ] WB24X25013 surface element control switch replace for GE Range Infinite Control.
- [ Upgrade Design ] WB24X25013 Electric Range Infinite Control Switch upgrade the composite metal switch.
- [ Simple Replacement ] WB24X25013 infinite switch has six connected terminals, which can take a picture.
- [ Long Service Life ] WB24X25013 infinite switch control is made of high quality materials and has a long.

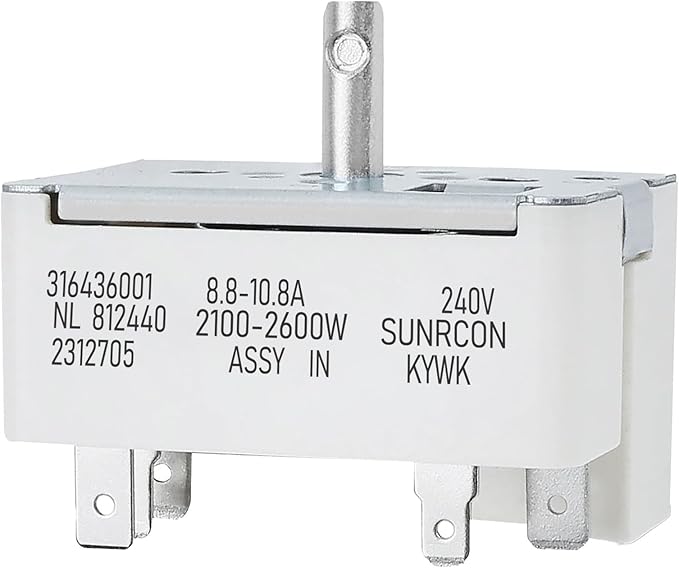

316436001 316021501 Range Infinite Switch for The Large Surface Burner Control Switch, Compatible with Frigidaire, Kenmore Stove,
