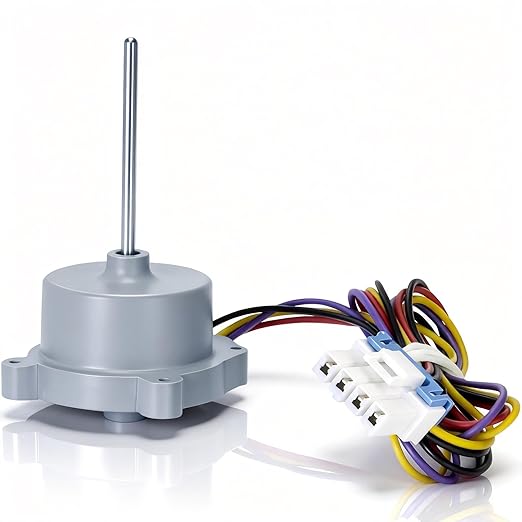

Upgraded EAU65058313 EAU63103001 Fridge Evaporator Fan Motor Compatible with LG Refrigerator Fan Motor LRTLS2403S/00 LTCS20020S/00 LTCS20020
- ăHigh Quality-EAU65058313 Evaporator Fan MotorăBuilt to last, sturdy, moisture-resistant, this EAU65058313 LG condenser fan motor is made of high quality conductive metal and corrosion-resistant materials for efficient o
- ăPart Number Perfect Fit For EAU65058313ăEAU65058313 lg refrigerator evaporator fan motor replaces EAU63103001 ODM-056F-13 AP7178307 PS16662420 EAP16662420. EAU65058313 lg fan motor assembly provides optimal airflow, cru
- ăCompatible ModelsăEAU65058313 refrigerator evaporator fan Compatible with LG Kenmore Refrigerator Models: LRTLS2403S/00 LTCS20020S/00 LHTNS2403S-ASTCNA0 LHTNS2403S-ASTCNA1 LTCS20020V-APZCNA0 LTCS20020V-APZCNA1 LBNC15231
- ăEAU65058313 Refrigerator Fan Fix SymptomsăThis Kenmore refrigerator fan motor EAU65058313 effectively addresses common refrigerator issues, including: fan motor not rotating due to aging, loud or unusual noises, poor co
- ăEasy To InstallăJust takes a few minutes to install EAU65058313 lg refrigerator fan motor. Disassemble the refrigerator door, bottom drawer, air grill and thermistor cover; Remove the old refrigerator evaporator fan mot

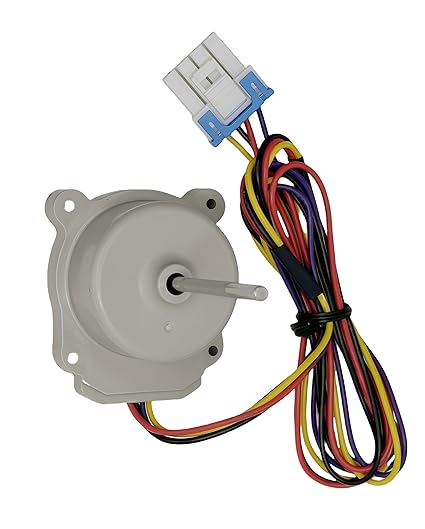

EAU65058312 ODM-056F-12 Refrigerator Evaporator Fan Motor Assembly,Compatible with LG Kenmore Refrigerator Condenser Fan Motor Replacement E
- ăPackage includeă1PCS EAU65058312 Refrigerator evaporator fan motor,Voltage: DC 12V, Current 1A,4-Wire 4-pin connecto,Shaft Length:45mm, Shaft diameter: 3.15mm, Line length:41cm
- ăDurable and SturdyăEAU65058312 Refrigerator evaporator fan motor is made of 1:1 mold, high speed, strong wind, good motor compatibility, low running noise, not easy to be damaged, rigorous testing before leaving the fac
- ăReplacement Part Numberă EAU65058522 EAU65058312 Refrigerator Freezer Fan MotorïŒ Replacing refrigerator part numbers includes:EAU65058522 EAU65058313 EAU63103001 EAU65058302 EAU65058304 EAU64843805 EAU65058502 EAU631030
- ăFailure performanceă EAU65058312 Refrigerator condenser fan noise increases abnormally, the fan does not rotate, the wind speed slows down, the cooling effect decreases, intermittent stopping or when the fast and slow r
- Replacing the EAU65058312 Refrigerator evaporator fan motor can effectively solve the above problems and is a good choice for you to replace the old fan,so as to maintain good heat dissipation inside the refrigerator, an
EAU63923603 Refrigerator Evaporator Fan Motor Assembly, Compatible with LG and Kenmore Refrigerators, Replacement for EAU65058305, EAU639236
- Perfectly Compatible: EAU63923603 Refrigerator Evaporator Fan Motor Assembly is compatible with LG refrigerators and Kenmore refrigerators
- Replaceable Part Number: EAU63923603 Refrigerator Fan Motor, Replaceable Part Number: EAU65058305, AP6317197, PS12383671, EAP12383671,PD00045140
- Design Notes: The EAU63923603 evaporator motor is an upgraded replacement. It may be slightly larger than the original, but the mounting holes and connector locations are identical , compatibility is unchanged.
- Quality Material: EAU63923603 Refrigerator evaporator fan DC motor housing is made of high quality ABS plastic for durability. The inside of the motor circuit is made of high quality metal for long life and reliability
- Efficient Cooling: Evaporator Fan Motor Replacement is a convenient and affordable way to repair your refrigerator, perfect solution for the following problems: refrigerator does not cool, does not cool enough, noisy, fa
You open your French door refrigerator's bottom freezer, expecting to feel a blast of icy air, but instead, it's just cool, or even warm. The ice cream is soft, and frozen vegetables are thawing. This is a frustrating problem, especially with a modern appliance designed for convenience and efficiency.
When your French door refrigerator's bottom freezer isn't cooling, it's usually due to a few common culprits. The most frequent issues include problems with the defrost system, a faulty evaporator fan motor, dirty condenser coils, or a compromised door seal. While it might seem daunting, many of these issues are surprisingly fixable with a bit of DIY know-how and the right tools.
Before you call a professional and incur a service call fee (typically $75-$150 in 2026 just for the visit), let's walk through the troubleshooting steps from the simplest and cheapest fixes to the more involved repairs. These initial checks are quick, require no special tools, and can often resolve the problem.
Check the Temperature Settings
It might sound obvious, but sometimes the temperature setting gets accidentally changed. Many French door refrigerators have separate controls for the fresh food compartment and the freezer. Ensure your freezer is set to 0°F (-18°C) or colder. If it's been set higher, it simply won't freeze properly.
Inspect the Door Seals
A compromised door seal, also known as a gasket, allows warm air to seep into the freezer compartment. This forces the appliance to work harder, yet it still struggles to maintain freezing temperatures. Over time, seals can become cracked, torn, or simply lose their magnetic grip.
- Visual Inspection: Look for any visible gaps, tears, or stiff spots around the entire perimeter of the freezer door seal.
- Paper Test: Close the freezer door on a dollar bill or a piece of paper. If you can pull the paper out easily with little resistance, the seal is likely weak at that spot. Repeat this around the entire door.
If you find a faulty seal, replacement gaskets cost approximately $30-$100, depending on your refrigerator model. This is a fairly straightforward DIY repair, usually involving pulling off the old seal and pressing on the new one.
Clear Air Vents
Inside your freezer, there are vents that circulate cold air. If these vents are blocked by food items, airflow is restricted, leading to uneven or insufficient cooling. Rearrange items to ensure all vents are clear. Also, check if anything is blocking the air return vent, usually at the back or bottom of the freezer compartment.
The Condenser Coils: Often Overlooked, Crucial for Cooling
Your refrigerator's condenser coils are responsible for releasing heat extracted from inside the appliance into the room. If these coils are caked with dust, pet hair, and debris, they can't dissipate heat efficiently. This forces the compressor to work harder, leading to decreased cooling performance in both the fridge and freezer sections.
How to Clean Condenser Coils
- Unplug the Refrigerator: Safety first. Always disconnect power before performing any maintenance.
- Locate the Coils: On most French door models, the condenser coils are located underneath the refrigerator, behind a kick plate or grille at the front bottom. Some older models might have them on the back.
- Clean Thoroughly: Use a vacuum cleaner with a brush attachment to remove dust and debris. A specialized condenser coil brush can reach tight spots.
- Replace the Grille and Restore Power: Once clean, reattach the kick plate and plug the refrigerator back in.
Cleaning your condenser coils is a free and easy fix that can often solve minor cooling issues and improve your refrigerator's overall efficiency. It's a task that should be part of your regular home appliance maintenance checklist.
The Evaporator Fan Motor: A Very Common Culprit
If your refrigerator section seems cold enough, but the bottom freezer is struggling, a failing evaporator fan motor is a very strong suspect. This fan is located inside the freezer compartment, behind a panel, and its job is to circulate cold air over the evaporator coils and throughout the freezer.
Without this fan running properly, the cold air produced by the evaporator coils simply sits there, unable to reach all parts of the freezer, or even the fresh food section in some designs. If your refrigerator is not cooling but the light is on, this is one of the possibilities to investigate.
Symptoms of a Faulty Evaporator Fan
- No Fan Noise: Open the freezer door and listen carefully. If the fan isn't running, or if it makes a grinding, rattling, or buzzing noise, it's likely faulty. The fan should typically shut off when the door opens, so you may need to manually depress the door switch to hear it operate.
- Uneven Cooling: Parts of your freezer might be slightly cold, while others are warm.
- Frost Buildup: Excessive frost on the evaporator coils, possibly due to the fan not circulating air, preventing the defrost system from working effectively.
Replacing the Evaporator Fan Motor
Replacing the evaporator fan motor is a DIY task that most homeowners can handle with basic tools. The part itself typically costs between $40 and $150. If you call a professional, expect to pay an additional $150 to $300 in labor, bringing the total cost to $190 to $450 in 2026.
Tools You'll Need:
- Screwdrivers (Phillips and flathead)
- Nut drivers or a socket set
- Pliers
- Multimeter (optional, for testing continuity)
step by step Replacement:
- Disconnect Power: Unplug the refrigerator from the wall outlet.
- Empty the Freezer: Remove all food and shelving from the freezer compartment.
- Access the Evaporator Cover: The evaporator fan and coils are usually located behind a removable panel at the back of the freezer. You'll need to unscrew several screws, often hidden under plastic caps or along the edges of the panel. Some models may require removing the ice maker first.
- Remove the Cover: Carefully detach the cover. Be gentle, as wires for the fan or temperature sensors might be attached.
- Inspect for Frost: If you see a heavy buildup of ice on the evaporator coils, it indicates a defrost system problem, not necessarily a fan issue. You'll need to manually defrost the unit first (turn it off for 24-48 hours with the doors open, or use a hairdryer on a low setting, keeping it moving).
- Disconnect and Remove the Fan: Once the coils are clear, locate the evaporator fan motor. Disconnect the electrical connector. Unscrew any mounting screws or clips holding the fan assembly in place.
- Install the New Fan: Connect the new fan motor's electrical connector. Secure it with the mounting screws or clips.
- Reassemble: Reattach the evaporator cover, reinstall any shelving or the ice maker, and plug the refrigerator back in.
For many LG and Kenmore French door refrigerators, the Upgraded EAU65058313 EAU63103001 Fridge Evaporator Fan Motor is a top pick. This model is built with high quality, moisture-resistant conductive metal and corrosion-resistant materials, designed for efficient operation and longevity. It's a direct replacement for several part numbers, including EAU63103001, AP7178307, PS16662420, and EAP16662420, ensuring optimal airflow for consistent cooling. This specific fan motor is compatible with a range of LG and Kenmore models such as LRTLS2403S/00, LTCS20020S/00, LHTNS2403S-ASTCNA0, and others, making it a reliable choice for your repair.
The Defrost System: When Ice Takes Over
Refrigerators periodically run a defrost cycle to prevent excessive ice buildup on the evaporator coils. If any component of the defrost system fails, the coils become encased in ice, which acts as an insulator, preventing the freezer from getting cold. The freezer might initially cool, but over time, it will gradually get warmer as ice accumulates.
The defrost system typically consists of three main components:
- Defrost Heater: Melts the ice off the evaporator coils.
- Defrost Thermostat (or Bi-Metal Thermostat): Senses the temperature of the evaporator coils and turns on the defrost heater when needed.
- Defrost Timer or Main Control Board: Initiates the defrost cycle at regular intervals.
Diagnosing Defrost System Issues
Diagnosing these parts requires a multimeter to test for continuity and resistance. If you're comfortable with basic electrical testing, this is a doable DIY. Otherwise, it might be time to consider professional help. A good electrical test kit is invaluable here.
Defrost Heater
After unplugging the fridge and accessing the evaporator coils (as described above for the fan), visually inspect the heater element, usually located at the bottom of the coils. If it's visibly broken or corroded, it needs replacement. You can test it for continuity with a multimeter; no continuity means it's bad. A new defrost heater can cost $50-$200.
Defrost Thermostat
This small, round component clips onto the evaporator coil. It should show continuity when cold (below 30°F / -1°C) and open when warm. If it doesn't, it's faulty. Defrost thermostats typically cost $20-$50.
Defrost Timer or Main Control Board
The defrost timer is less common in newer French door models, which often use a main control board (PCB) to manage defrost cycles. If you suspect the timer, you might be able to manually advance it to start a defrost cycle. If the heater comes on, the timer might be faulty. If the main control board is suspected, professional diagnosis is usually recommended as these parts are expensive ($150-$400) and complex to replace.
"Many people overlook the defrost system, but it's critical. If those coils are iced over, it doesn't matter how well your fan or compressor works, you won't get proper cooling. Always check for excessive frost as your first clue," says Sarah Jenkins, a senior appliance technician at Apex Appliance Services.
Other Potential Causes
While less common, these issues can also lead to a warm freezer:
Damper Control Assembly
In some French door models, a damper controls the airflow between the fresh food compartment and the freezer. If this damper gets stuck in a closed position, not enough cold air will reach the freezer. You can often locate and visually inspect the damper for obstructions or damage. Replacements usually cost $50-$150.
Thermistor
A thermistor is a sensor that monitors the temperature inside the freezer and sends signals to the control board. If it's faulty, the control board might not receive accurate temperature readings, causing it to incorrectly cycle the compressor or defrost system. Testing requires a multimeter to check resistance values (which vary by temperature). A replacement thermistor is generally $20-$60.
Compressor or Sealed System Issues
If none of the above fixes work, and both your refrigerator and freezer sections are warm, you might have a problem with the compressor or a leak in the sealed refrigeration system. This is a complex and expensive repair, often requiring specialized tools and refrigerants. The cost for a compressor replacement can range from $400-$800, and a sealed system repair can be even higher. Those repairs require EPA-certified technicians and specialized equipment. For a major repair like that, especially on an older unit, it's often more economical to put that money towards a new refrigerator," advises Mark Thompson, owner of Thompson Home Appliance Repair in 2026.
When to Call a Professional
While many of these repairs are DIY-friendly, there are times when calling a professional appliance technician is the smarter choice:
- Lack of Confidence: If you're uncomfortable working with electrical components or disassembling your appliance.
- Complex Diagnoses: When you've checked the common culprits and still can't identify the problem.
- Sealed System Issues: Any problem related to the compressor, refrigerant, or sealed coils requires a certified technician.
- Time Constraints: If you need a quick fix and don't have the time to troubleshoot extensively.
A professional service call typically costs $75-$150, which includes diagnosis. Labor rates usually range from $75-$150 per hour, plus parts. Factor these costs against the price of a new refrigerator, especially if your current one is over 10 years old.
Keeping Your Freezer Cold
A French door refrigerator with a warm bottom freezer is a frustrating problem, but with a systematic approach, you can often diagnose and fix it yourself. Start with the simplest checks, like door seals and condenser coil cleaning, then move on to the evaporator fan and defrost system components. By understanding these common issues and their solutions, you can restore your freezer to proper working order, protecting your food and saving money on expensive service calls in 2026. Remember, safety first: always unplug your appliance before beginning any repair work.
